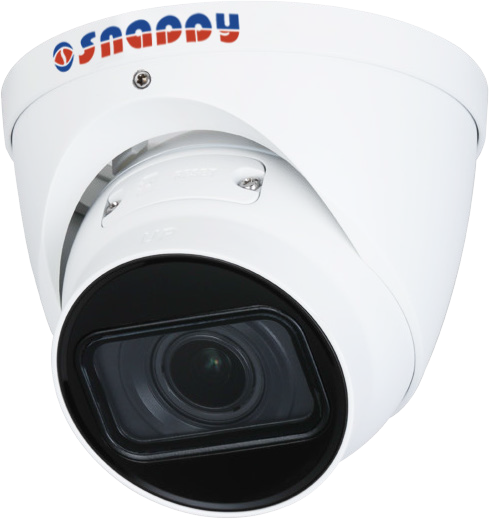

Eyeball 4MP WDR IR Camera - IP-EB4MVFC-SS
Model : IP-EB4MVFC-SS

Features

  • 4MP, 1/3” CMOS image sensor,low illuminance,high image definition
  • Outputs 4MP (2560 × 1440)@25/30 fps, max. supports 4MP (2688 × 1520)@20 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in IR LED, max IR distance: 40 m
  • ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent detection: Intrusion, tripwire
  • Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
  • Supports max. 256 GB Micro SD card
  • 12V DC/PoE power support
  • IP67 protection

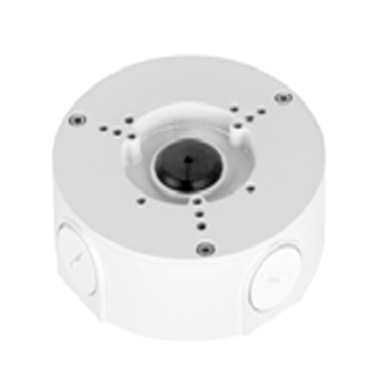

Accessories (optional)

Technical Specifications

Camera
Image Sensor 1/3” 4Megapixel progressive CMOS
Effective Pixels 2688(H) x 1520(V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.01 Lux@F1.5
IR Distance 40 m (131.23 ft)
IR On/Off Control Auto/ Manual
IR LEDs Number 2
Pan/Tilt/Rotation Range
Horizonal: 0°–355°
Vertical: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Motorized vari-focal
Mount Type φ14
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.5
Field of View
Horizonal: 104°–27°
Vertical: 55°–15°
Diagonal: 124°–31°
Iris Type Fixed aperture
Close Focus Distance 0.8 m–0.8 m (2.62 ft–2.62 ft)
DORI Distance Lens Detect Observe Recognize Identify
W 64 m(209.97 ft) 25.6 m(83.99 ft) 12.8 m(41.99 ft) 6.4 m(21.00 ft)
T 220 m(721.78 ft) 88 m(288.71 ft) 44 m(144.36 ft) 22 m(72.18 ft)
Smart Event
General IVS Analytics Intrusion; tripwire
Video
Video Compression H.265; H.264; H.264B; MJPEG
Smart Codec Yes
Video Frame Rate
Main stream: 2688 × 1520 (1 fps-20 fps) 2560 × 1440 (1 fps-25/30 fps)
Sub stream: 704 × 576 (1 fps-25 fps) 704 × 480 (1 fps-30 fps)
Stream Capability 2 streams
Resolution 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate
H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
Day/Night Auto(ICR) / Color / B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto/Natural/Street Lamp/Outdoor/Manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Smart IR Yes
Image Rotation 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution.)
Mirror Yes
Privacy Masking 4 areas
Network
Network RJ-45 (10/100Base-T)
Protocol HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP
Interoperability ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec
User/Host 20
Edge Storage FTP; Micro SD Card (support max. 256 GB); NAS
Browser IE
Chrome
Firefox
Management Software IE, Chrome, Firefox, Safari
Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
Certifications
Certifications
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption < 6.4W
Environment
Operating Conditions -30°C to +60°C (-22°F to +140°F)/less than ≤ 95%
Storage Temperature -40°C to +60°C (-40°F to +140°F)
Protection IP67
Structure
Casing Metal

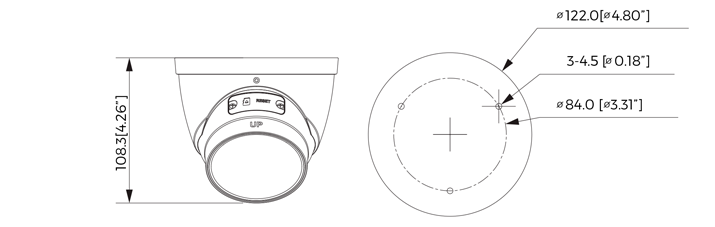

Dimensions 108.3 mm × Φ122 mm (4.26" × Φ1.80")
Net Weight 0.69 kg (1.52 lb)
Gross Weight 0.88 kg (1.94 lb)
