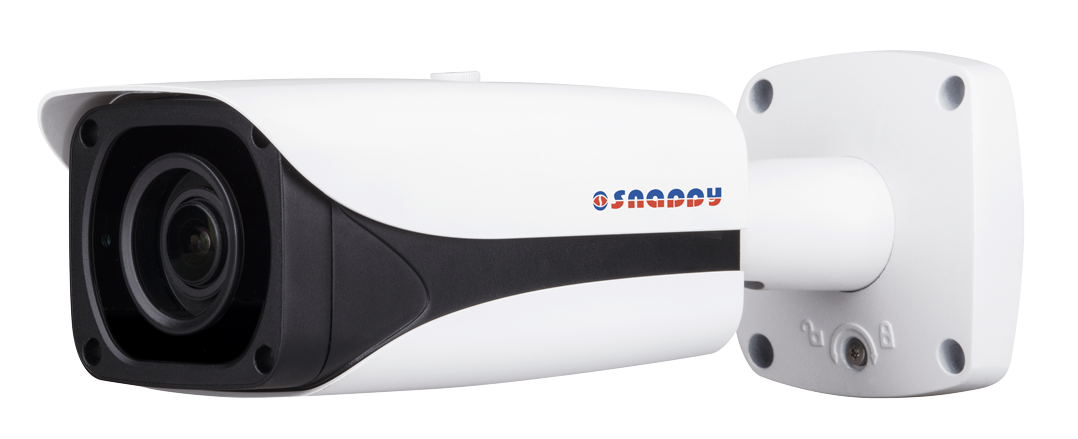

8MP IR Bullet Camera
Model : IP-B8MC-PS

Features

  • 1/2.5” 8Megapixel progressive scan CMOS
  • H.265&H.264 triple-stream encoding
  • 15fps@4K(3840×2160),25/30fps@3Mp(2304×1296)
  • Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 2.7mm ~12mm motorized lens
  • Max. IR LEDs Length 50m
  • IP67,IK10, PoE

Accessories (optional)

Technical Specifications

Camera
Image Sensor 1/2.5” 8Megapixel progressive scan CMOS
Effective Pixels 3840(H)x2160(V)
RAM/ROM 512MB/32MB
Scanning System Progressive
Min. Illumination 0.05Lux/F1.6 (Color), 0Lux/F1.6(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 50m (164ft)
IR On/Off Control Auto/ Manual
IR LEDs 4
Lens
Lens Type Motorized/ Auto Iris(DC)
Mount Type Board-in
Focal Length 2.7mm~12mm
Max. Aperture F1.6
Angle of View H:102°~39° , V:55°~22°
Optical Zoom 4x
Focus Control Motorized
Close Focus Distance 0.3m
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚
Intelligence
IVS (optional) Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions Face Detection
Video
Compression H.265+/H.265/H.264+/H.264
Streaming Capability 3 Streams
Resolution 4K(3840×2160)/6M(3072×2048)/5M(2560×1920)/3M(2048x1536)/3M(2304×1296)/ 1080P(1920×1080)/1.3M(1280x960)/720P(1280×720)/D1(704×576/704×480) /VGA(640×480)/CIF(352×288/352×240)
Frame Rate
Main Stream 4K(1~15fps)/3M(1~25/30fps)
Sub Stream D1(1~25/30fps)
Third Stream 720P(1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 24K ~ 10240Kbps,H.265: 14K ~ 9984Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR Support
Defog N/A
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression G.711a/ G.711Mu/ AAC/ G.726
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;IGMP; SNMP
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS
Local PC for instant recording
Mirco SD card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Easy4ip
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video Interface N/A
Audio Interface 1/1 channel In/Out
RS485 N/A
Alarm 2/1 channel In/Out
Electrical
Power Supply DC12V, PoE (802.3af)(Class 0)
Power Consumption <11.5W
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Construction
Casing Metal

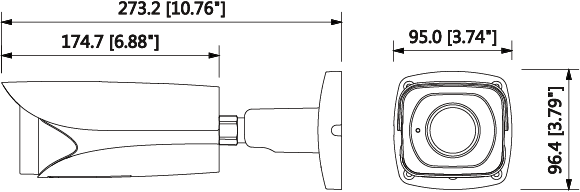

Dimensions 273.2mm×95.0mm×96.4mm (10.76”×3.74”×3.79”)
Net Weight 1.07Kg (2.36lb)
Gross Weight 1.4Kg (3.09lb)

Application

1

Application

8MP IR Bullet Camera
