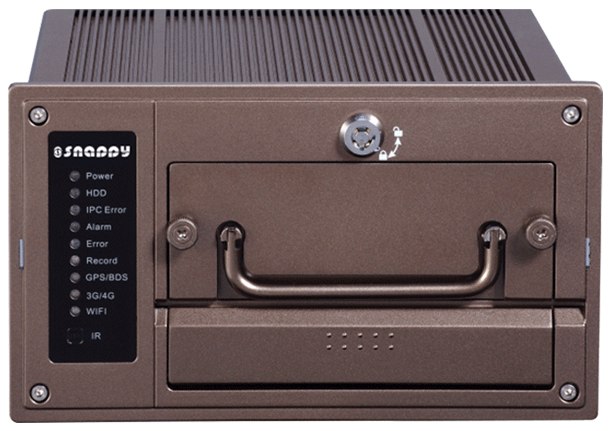

8 Channel PoE MNVR
Model : MNVR-28R

Features

  • Up to 8 channel with 1080P realtime live view
  • H.264/MJPEG dual codec decoding
  • Max 200 Mbps recording rate
  • 4 channel synchronous realtime playback, GRID interface
  • HDMI/VGA/TV simultaneous video output
  • Support 2 SATA HDDs up to 4TB, 1 eSATA, 3 USB
  • Support IPC UPnP, 8 PoE ports
  • Aviation connectors adopted ensuring signal stability
  • ONVIF Version 2.3 conformance
  • Multiple network monitoring: Web viewer, Snappy Universal CMS

Technical Specifications

Model MNVR-28R
System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Video
IP Camera Input 8 channel
Audio
Input 8 channel
Output 1 channel
Two-way Talk 1ch Mic in, 1ch Mic out
Display
Interface 1 HDMI, 1VGA, 2TV
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4/8/9
Privacy Masking 4 rectangular zones (each camera)
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression H.264/ G.711/ PCM
Resolution 1080P(1920×1080)/720P(1280×720)/ D1(704×576/704×480) /HD1(352 ×576/352×480)/2CIF(704 ×288/704 ×240)CIF(352 ×288/352 ×240)/QCIF(176 ×144/176×120)
Record Rate Max 200 Mbps
Bit Rate 48~8192Kb/s
Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval 1~120 min (default: 60 min), Pre -record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm out, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input 8 channel
Relay Output 2 channel
Playback & Backup
Sync Playback 1/4
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next le, Previous le, Next camera, Previous camera, Full screen, Repeat, Shue, Backup selection,Digital zoom
Backup Mode USB Device /eSATA Device/Network /Internal HDD
Network
Ethernet 1RJ-45 port (10/100M)
PoE 8 ports(IEEE 802.3af/at)
Wireless Network Built-in 3G/4G/Wi-Fi module(optional)
Positioning GPS/BDS(optional)
Network Functions TCP/IP, UDP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Email, Alarm Server
Max. User Access 128 users
Smart Phone iPhone, iPad, Android, Windows Phone
Storage
Internal HDD 2 SATA port s up to 4TB
External HDD 1 eSATA port
Memory Slot 1 SD card
Auxiliary Interface
USB 3 ports, 2USB 3.0
RS232 1 port, For PC communication & Keyboard
RS485 1 port, For PTZ control
G-sensor Support
UPS Support
CAN port Power supply for PTZ
General
Power Supply 6V~36V
Power Consumption ≤15W
Working Environment -10°C ~+60°C / 10%~95%RH / 86~106kpa
Dimension(W×D×H) 180mm×208mm×100mm
Weight 3KG(without HDD)
