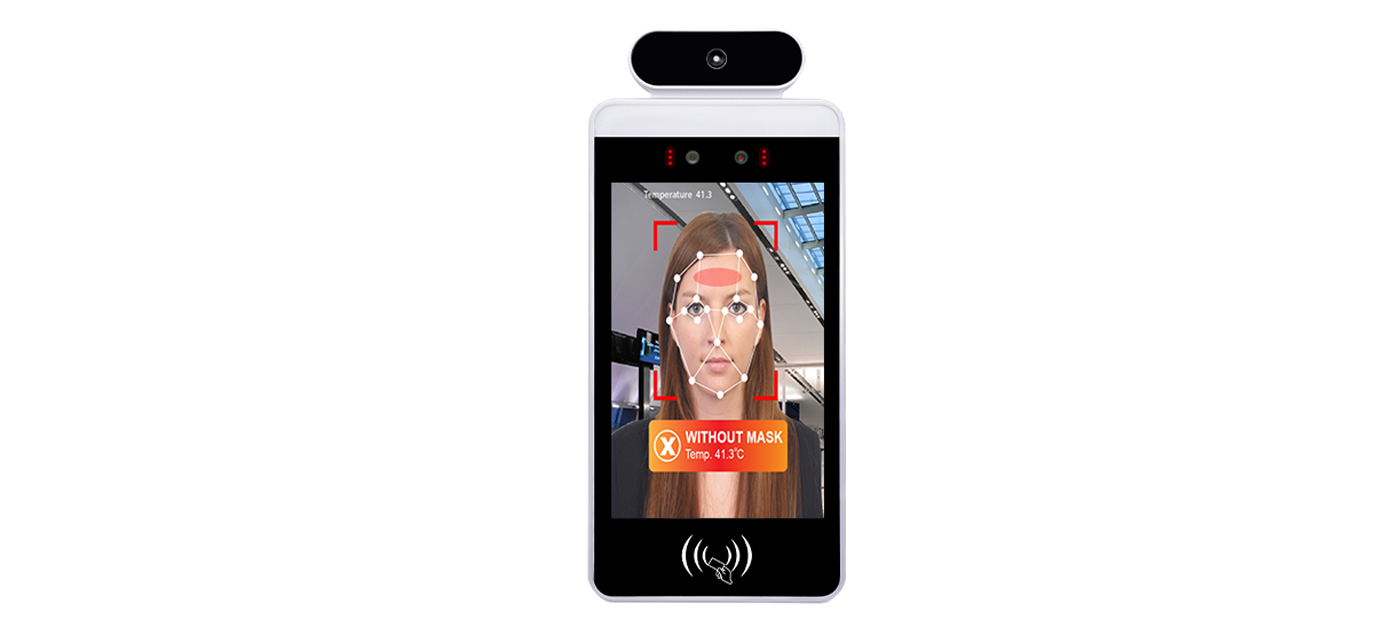

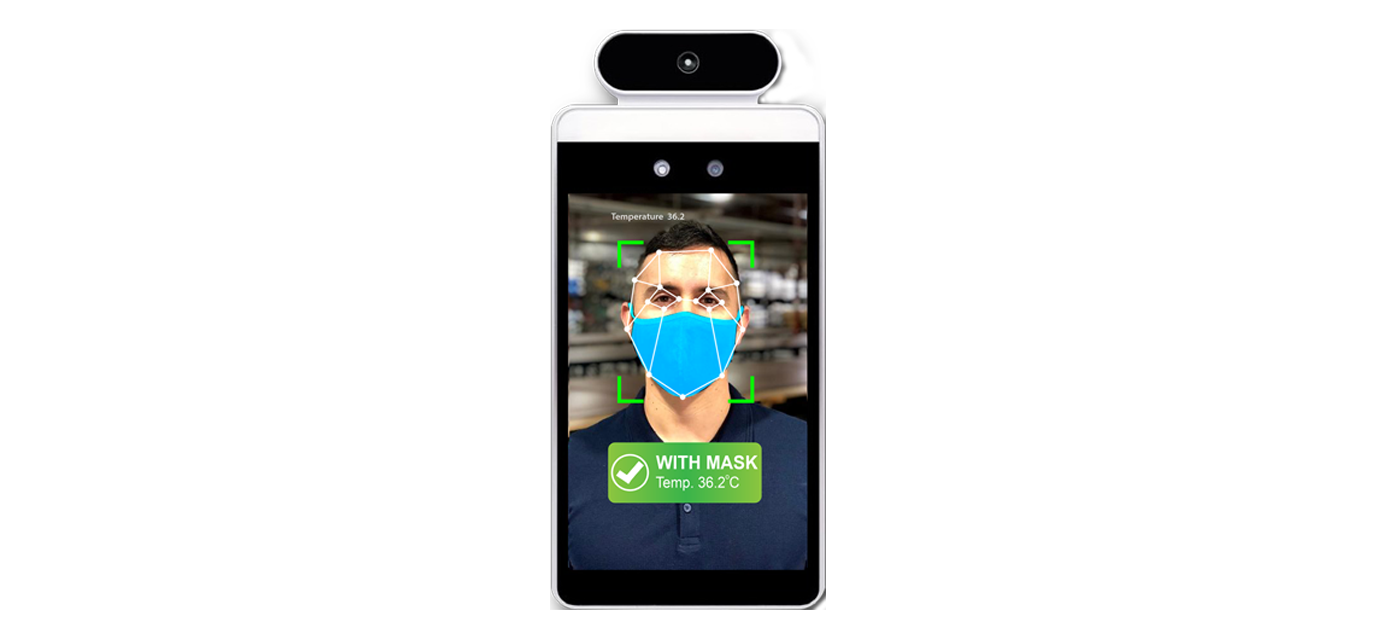

Face Recognition with Temperature
Model : BW-01 30I-IC

Features

  • 8-inch IPS full-view LCD display.
  • Industrial-class appearance, waterproof and dustproof design which is stable and reliable.
  • Supports 30,000 face database. The 1: 1 comparison recognition rate is more than 99.7%, the 1: N comparison recognition rate is more than 96.7% @ 0.1% misrecognition rate, and the live detection accuracy rate is 98.3% @ 1% misrejection rate. Face recognition pass speed is less than 1 second.
  • Supports accurate face recognition and comparison while wearing a mask.
  • Using industrial-grade binocular wide dynamic camera, night infrared and LED dual photo flood lamp.
  • Support processors with strong performance: Rockchip RK3288 quad-core processor, Rockchip RK3399 six-core processor and Qual comm MSM8953 octa-core processor.
  • Supports human body temperature detection and temperature display. The best temperature detection distance is 0.5 meters.The longest distance at which body temperature can be measured is 1 meter. The measurement error is plus or minus 0.5°C.

Technical Specifications

Camera :
Resolution 2 million pixels
Type Binocular wide dynamic camera
Aperture RK3066 F2.4
Focusing distance 50-150cm
White balance auto
Photo flood light LED and IR dual photo flood light
Screen :
Size 8.0 inch IPS LCD screen
Resolution 800×1280
Touch Not supported (optional support)
Processor :
CPU RK3288 quad-core (optional RK3399 six-core, MSM8953 eight-core)
Storage EMMC 8G
Interface :
Network module Ethernet and wireless (WIFI)
Audio 2.5W / 4R speakers
USB 1 USB OTG, 1 USB HOST standard A port
Serial communication 1 RS232 serial port
Relay output 1 door open signal output
Wiegand interface One Wiegand 26/34 output, one Wiegand 26/34 input
Upgrade button Support Uboot upgrade button
Wired network 1 RJ45 Ethernet socket
Function :
Credit card reader None (optional IC card reader, ID card, ID card)
Face Detection Supports detection and tracking of multiple people at the same time
Face library Up to 30,000
1: N face recognition Support
1: 1 face comparison Support
Stranger detection Support
Identify distance configuration Support
UI interface configuration Support
Upgrade remotely Support
Interface Interfaces include device management, personnel / photo management, record query, etc. Deployment method Support public cloud deployment, privatized
Temperature detection Support
Temperature detection distance 1 meter (optimal distance 0.5 meter)
Temperature measurement accuracy ≤ ±0.5℃
Infrared thermal imaging module :
Temperature measurement range 10℃~42℃
Pixels 32 X 32 dots (total 1024 pixels)
Visitors' temperature is normal and released directly Support
Abnormal temperature alarm Support (temperature alarm value can be set)
General Parameters :
Power DC12V(±10%)
Operating temperature 0℃~60℃
Storage temperature -20℃~60℃
Power consumption 13.5W(Max)

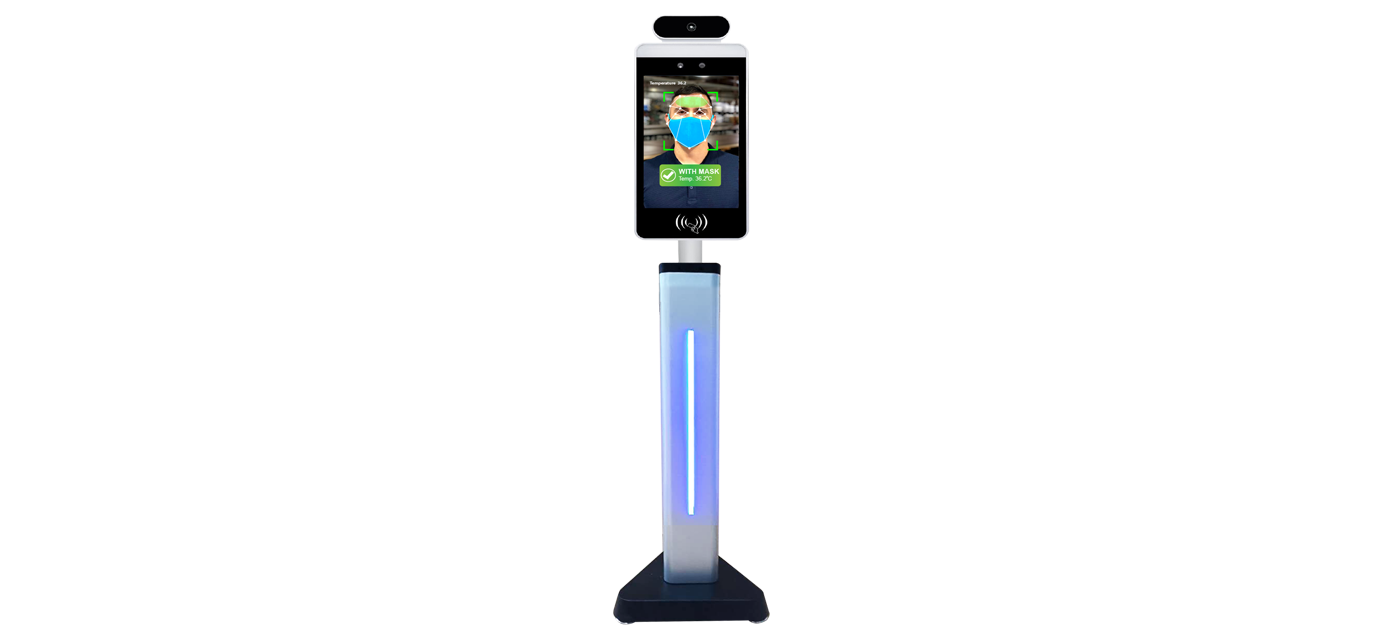

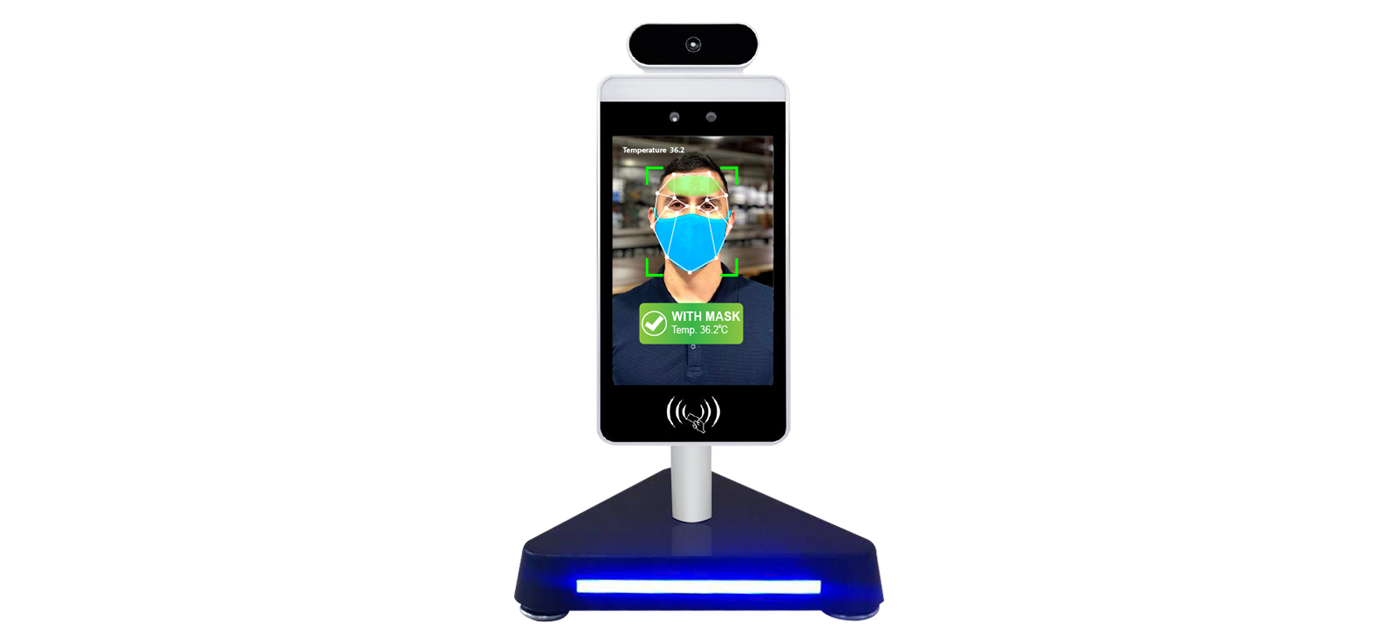

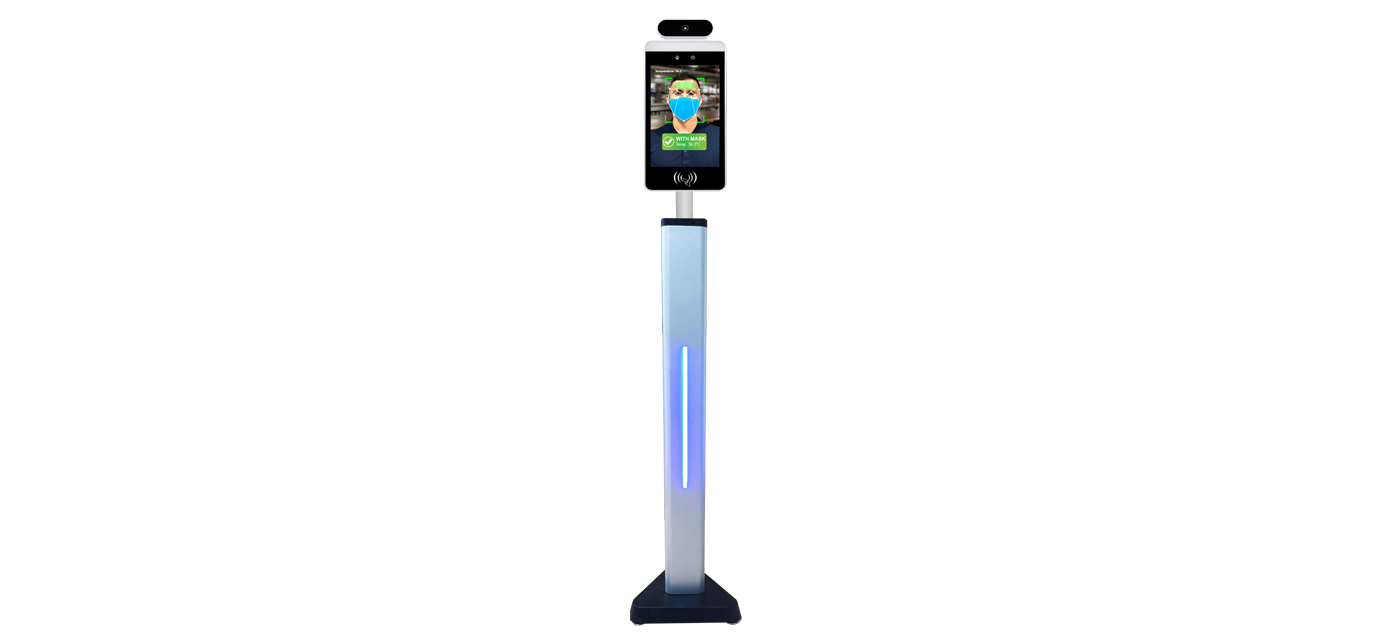

Installation method Gate bracket installation

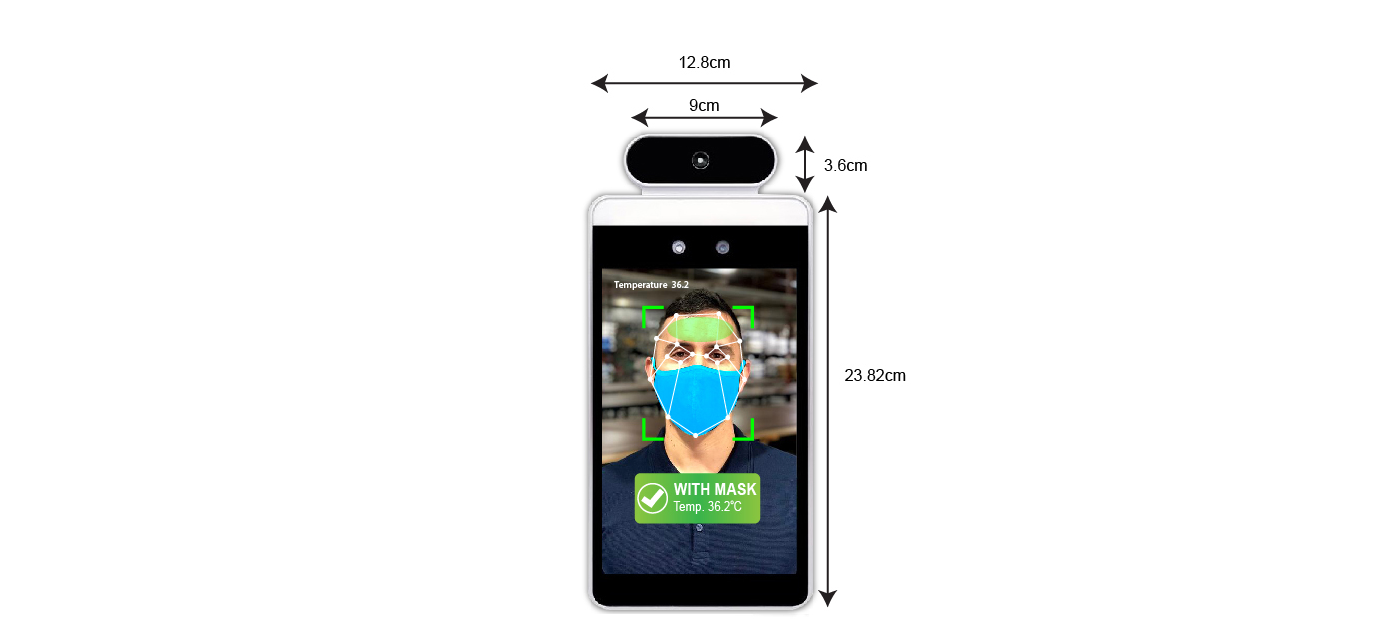

Size Standard:274.24*128*21.48(mm) IC card / ID card:296.18*132.88*25(mm)
Packing List :
Packing List Machine * 1, power adapter * 1, manual * 1, certificate of conformity * 1
