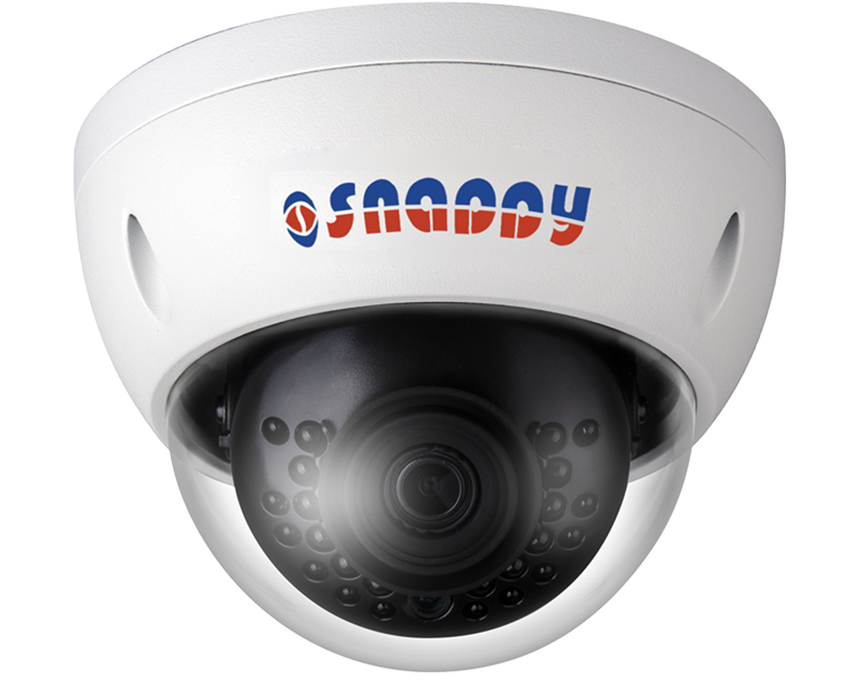

Dome Wedge Camera
Model : IP-MD103FC-WS

Features

  • 1/3” 1.3Megapixel progressive CMOS
  • H.264 & MJPEG dual-stream encoding
  • 25/30fps@1.3M(1280× 960)
  • DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Wi-Fi support
  • 2.8 mm fixed lens (3.6 mm optional)
  • Max IR LEDs Length 30m
  • IP67, IK10

Accessories (optional)

Technical Specifications

Camera
Image Sensor 1/3” 1.3Megapixel progressive CMOS
Effective Pixels 1280(H) x 960(V)
RAM/ROM 256MB/16MB
Scanning System Progressive
Min. Illumination 0.5Lux/F2.5(Color), 0Lux/F2.5(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 30m(98ft)
IR On/Off Control Auto/ Manual
IR LEDs 24
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8 mm (3.6 mm optional)
Max. Aperture F2.5/F2.5
Angle of View H:92°/72°, V:66°/53°
Focus Control Fixed
Close Focus Distance N/A
PTZ
Pan/Tilt Range Pan:0° ~355° ;Tilt:0° ~55° ;Rotation:0° ~355°
Video
Compression H.264/H.264B/H.264H/MJPEG
Streaming Capability 2 Streams
Resolution 1.3M(1280×960)/720P(1280×720)/VGA(640×480)/QVGA(320×240)
Frame Rate 1.3M(1~25/30fps)
VGA(1 ~ 25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H264:32K ~ 10240Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Support
Smart IR Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression N/A
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi Wi-Fi(IEEE802.11b/g/n), 50m(open field)
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;802.1x;Multicast;ICMP;IGMP;
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS(Network Attached Storage)
Local PC for instant recording, 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS,Easy4ip
Smart Phone iPhone, iPad, Android Phone
Certifications
Certifications CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video Interface N/A
Audio Interface N/A
RS485 N/A
Alarm N/A
Electrical
Power Supply DC12V
Power Consumption <4.6W
Environmental
Operating Conditions -10° C ~ +50° C (-14° F ~ +122° F) / Less than 95% RH
Strorage Conditions -10° C ~ +50° C (14° F ~ +122° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Metal

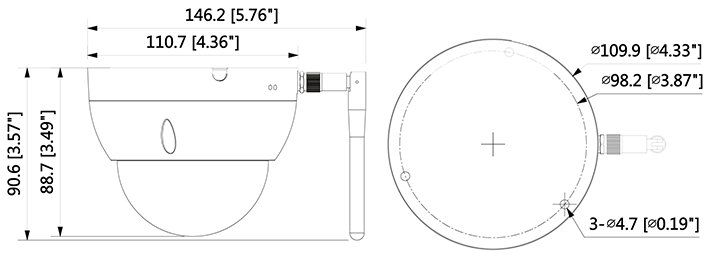

Dimensions Φ109.9mm × 81mm (4.33' x3.19'')
Net Weight 0.34Kg (0.75lb)
Gross Weight 0.47Kg (1.04lb)

Application

1

Application

Dome Wedge Camera
